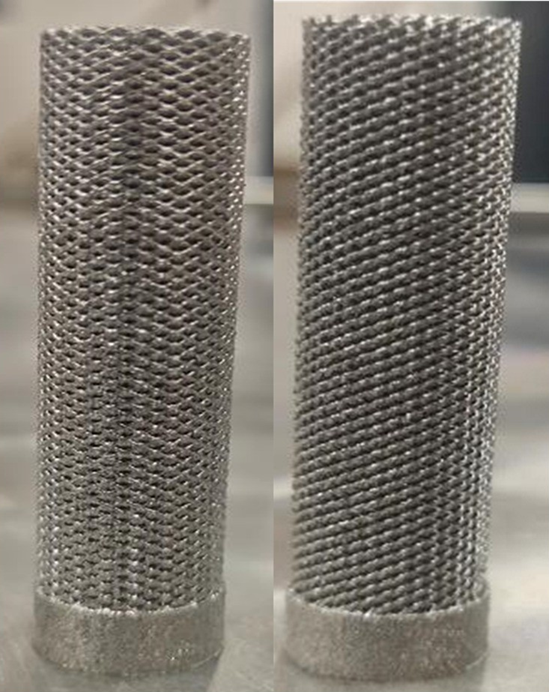

Lattice Structures for Heat Exchanger Tubes Using Inconel 718 Metal 3D Printing Solutions
In heat exchanger applications, efficient thermal management and durability are essential for optimal performance. Incorporating lattice structures within heat exchanger tubes can significantly enhance heat transfer efficiency by increasing surface area and improving fluid dynamics. Using Inconel 718, a high-performance nickel-chromium alloy, in 3D printing enables the production of complex lattice geometries that can withstand high temperatures and corrosive environments. This combination is ideal for heat exchangers in demanding applications, such as aerospace, chemical processing, and power generation.
Material Properties of Inconel 718:
Inconel 718 offers a range of benefits, including:
High Temperature Resistance: It can withstand temperatures up to 700°C (1300°F), ideal for heat exchangers exposed to high-heat conditions.
Exceptional Corrosion Resistance: Its ability to resist oxidation and various forms of corrosion makes it suitable for harsh environments.
Strength and Durability: Inconel 718 provides excellent mechanical strength, allowing it to handle high-pressure applications and maintain structural integrity over time.
Fatigue and Creep Resistance: This alloy resists deformation under constant stress and high temperatures, ensuring long-term reliability.
Design Considerations:
Designing lattice structures for heat exchanger tubes with Inconel 718 involves key considerations to optimize heat transfer and durability, including:
Surface Area Optimization: Lattice structures can maximize the internal surface area, improving heat transfer efficiency between fluids within the tube.
Fluid Flow Dynamics: Precise lattice geometries can be tailored to create optimal flow paths, enhancing thermal conductivity and reducing pressure drops.
Thermal Expansion Management: Inconel 718’s stability at high temperatures ensures the lattice maintains its integrity under thermal expansion and contraction.
Structural Integrity: Lattice structures must be carefully designed to balance thermal performance with mechanical stability, ensuring they withstand operational stresses over prolonged use.
CAD Design & Drafting Services:
FusionProTech offers advanced CAD design and drafting services for customized lattice structures in heat exchanger tubes. Our services include:
3D Modeling: We develop detailed 3D models that capture intricate lattice patterns, maximizing surface area and ensuring accurate fit within heat exchanger systems.
Thermal and Fluid Simulation: We utilize simulation tools to analyze heat transfer, fluid flow, and pressure drops, allowing for optimization of the design for efficient thermal performance.
Technical Drafting: Precise technical drawings are created with specific dimensions, material properties, and tolerances to facilitate accurate manufacturing and quality control.
Customized Design Solutions: Our team collaborates with clients to tailor lattice structures to specific application requirements, optimizing performance for unique heat exchanger configurations.
Metal 3D Printing Capabilities with Inconel 718:
Our Inconel 718 metal 3D printing capabilities offer several advantages for manufacturing lattice structures in heat exchanger tubes:
Precision Manufacturing: 3D printing allows for the creation of intricate lattice patterns with high precision, ensuring design accuracy and functionality.
Material Efficiency: By building structures layer by layer, 3D printing minimizes material waste, offering a more sustainable and cost-effective manufacturing solution.
Rapid Prototyping: We can quickly produce prototypes for testing, allowing clients to assess and refine designs before moving to full-scale production.
Complex Geometries: Metal 3D printing enables the production of advanced lattice structures that are difficult or impossible to create with traditional methods, enhancing heat transfer capabilities.
At FusionProTech, we are dedicated to providing innovative solutions for the heat exchanger industry. Our expertise in CAD design, drafting, and metal 3D printing with Inconel 718 allows us to create customized lattice structures that improve thermal performance and durability. By combining precision engineering with advanced manufacturing technologies, we help our clients achieve efficient, reliable heat transfer in demanding environments.
